Data

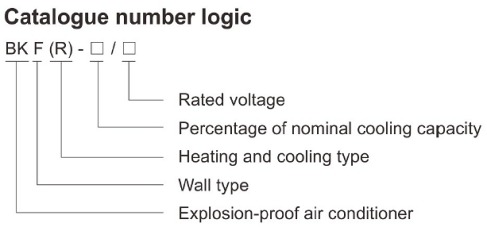

Type		BKF(R)-50/220	BKF(R)-71/220
Cooling capacity	W	5275	7032
Cooling capacity	BTU	18000*	24000* BTU
Heating capacity	W	5600	6600
Rated voltage / Frequency (V/Hz)		220~240 / 50	220~240 / 50
Input power (P)		2P	3P
Cooling input power (W)		1432 / 6.5	2200 / 10
Heating input power (W)		1690 / 7.68	2600 / 11.8
Application areas (m²)		22~37	27~44
Sound level (dB)	Indoor unit	43*	44*
Sound level (dB)	Outdoor unit	54*	54*
Outline dimensions (L × W × H) (mm)	Indoor unit	960 × 385 × 245*	1070 × 400 × 275*
	Outdoor	1450 × 900 × 700*	1450 × 900 × 700*
	Control box	690 × 430 × 211	690 × 430 × 211
Weight (kg)	Indoor	21.00*	25.00*
	Outdoor	146.00*	148.00*
	Control box	30	30
Note: The above technical data is for normally supplied products of T3 (-7℃~+55℃) temperature class, voltage is 220~240V AC/50Hz, other voltages are available, such as 220~240V AC/60Hz, please specify when ordering Data "*" are for reference, the actual product shall prevail The above data is only for reference, the actual product shall prevail.
