BKG(R) Series Explosion Proof Tank Air Conditioner ATEX Approved For Zone 1 Zone 2

BKG(R) Series Explosion Proof Tank Air Conditioner ATEX Approved For Zone 1 Zone 2
Download Download Brochure
Data
Type BKG-70/220 BKGR-70/220 BKG-120/380 BKGR-120/380
Cooling capacity W 7300 7300 12200 12200
BTU 24000* 24000* 40000* 40000*
Heating(W) capacity - 7800 - 14500
Rated voltage / Frequency (V/Hz) 220 / 50 220 / 50 380 / 50 380 / 50
Input power (P) 2P 3P 5P 5P
Cooling input power (W) 2780 / 12.1 2780 / 12.1 4380 / 7.8 4380 / 7.8
Heating input power (W) - 2600 / 11.3 - 5000 / 8.9
Application areas (m²) 27~32 27~32 50~80 50~80
Sound level (dB) Indoor unit 43* 43* 52* 52*
Outdoor unit 53* 53* 56* 56*
Outline dimensions (L × W × H) (mm) Indoor unit 1900 × 600 × 280* 1900 × 600 × 280* 1900 × 600 × 280* 1900 × 600 × 280*
Outdoor unit 870 × 850 × 319* 870 × 850 × 319* 1250 × 970 × 369* 870 × 850 × 319*
Control box 380 × 250 × 165 380 × 250 × 165 380 × 250 × 165 380 × 250 × 165*
Weight (kg) Indoor 48.00* 48.00* 48.00* 48.00*
Outdoor 75.00* 75.00* 119.00* 119.00*
Control box 6 6 7 7
Note: Note: 1.The above technical data is for normally supplied products of T1 (-7℃~+43℃) temperature class, rated voltage is 220V AC/50Hz, other voltages are available, such as 220V AC/60Hz, 230V AC/50Hz, 230V AC/60Hz, 240V AC/50Hz, 240V AC/60Hz, 380V AC/50Hz, 380V AC/60Hz etc., please specify when ordering.

2.The above data is only for reference, the actual product shall prevail.

3.Data with "*" are for ference, the specific kinf prevail.
warromLogo

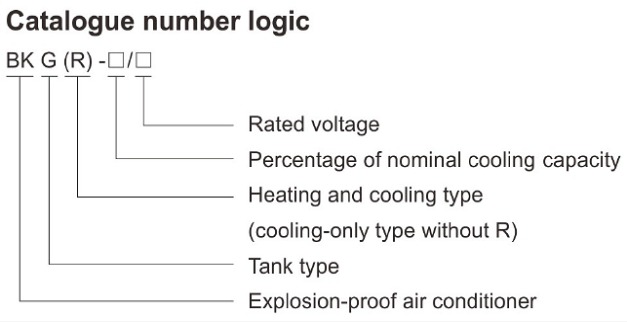

Engineering Diagram
Specification
Global (IECEx) IECEx (applied for)
Gas Ex db eb ib [ib Gb] nC IIB T4 Gc
Ex db eb ib [ib Gb] nC IIC T4 Gc
Europe (ATEX) ATEX (applied for)
Gas Ex II 3 (2) G Ex db eb ib [ib Gb] nC IIB T4 Gc
Ex II 3 (2) G Ex db eb ib [ib Gb] nC IIC T4 Gc
Certificates IECEx; ATEX
Conformity to standards EN; IEC
