BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments

BZC8050 Series GRP Control Stations Explosion Proof For Harsh Environments
Download Download Brochure
Data
Material GRP (glass fibre-reinforced polyester resin)
Dimensions As per design
Weight 0.65~7.3kg
Enclosure colour Black
Exposed fastener Stainless steel
Rated voltage Max. 500V/440V AC
Max.220V DC
Rated current 16A,10A
Components Refer to catalogue
Cable entries M□ x 1.5 plug, please see the Selection table on P4/25
Cable gland (optional) DQM-I (Ex e) is recommended
Mounting Surface type
warromLogo

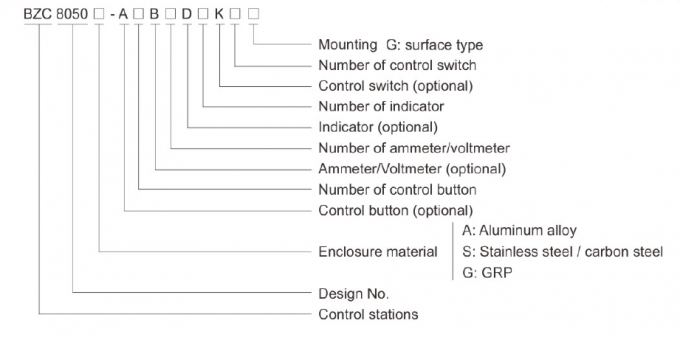

Engineering Diagram
Specification
Global (IECEx) IECEx CQM 24.0057X
Gas and dust Ex db eb mb IIC T6/T5 Gb
Ex db eb IIC T6/T5 Gb
Ex tb IIIC T80℃ Db
Europe (ATEX) TUV CY 25 ATEX 0207269X
Gas and dust Ex II 2 G Ex db eb mb IIC T6/T5 Gb
Ex II 2 G Ex db eb IIC T6/T5 Gb
Ex II 2 D Ex tb IIIC T80℃ Db
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP66
Ambient temperature -60℃(-40℃)~+55℃(+40℃)
