BZC-HMI Series Explosion-proof Touchscreen Ex Db Eb NA IIC
Download Brochure| Data | |
|---|---|
| Enclosure material | Stainless steel |
| Enclosure colour | Metal colour |
| Enclosure colour | Window grey(RAL7040) |
| Exposed fastener | Stainless steel |

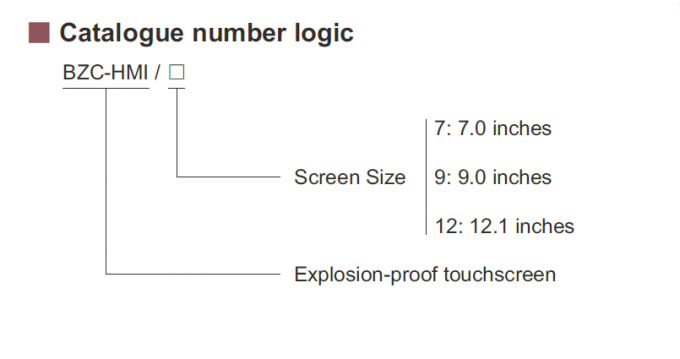

| Screen Size | 7.0 inches 9.0 inches 12.1 inches |
| Resolution | 800×480 800×480 1280×800 |
| Rated voltage | 24V DC |
| Rated current | 10A |
| Internal&external earthing | M6/M6 |
| Cable entries | Standard M□ x 1.5 plug. |
| Cable gland (optional) | DQM-II (Ex d),DQM-III (Ex d) is recommended |
| Mounting | Surface type |
| Specification | |
|---|---|
| Global (IECEx) | IECEx (applied for) |
| Gas and dust | Ex db eb nA IIC T6 Gc |
| Ex tb IIIC T80℃ Db | |
| Gas and dust | Ex II 3 G Ex db eb nA IIC T6 Gc |
| Ex II 2 D Ex tb IIIC T80℃ Db | |
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP65 |
| Ambient temperature | -0℃~+50℃ |
