BZM Series Explosion Proof Illumination Switches Electrical Switches Powder Coated Surface
Download Brochure| Data | |
|---|---|
| Material | Copper-free Aluminium Alloy, powder coated surface |
| Weight | 0.85kg~0.95kg |
| Dimensions | 110mm×124mm×108mm |
| Enclosure colour | Window grey (RAL7040) |

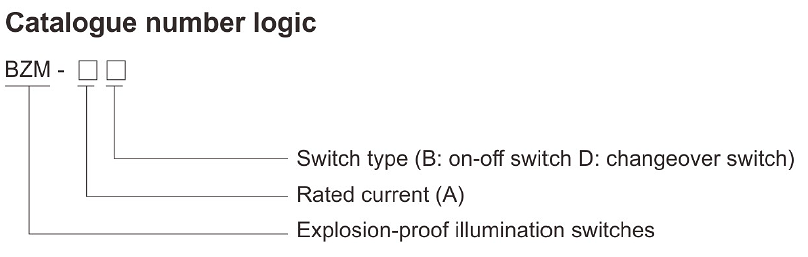

| Switch function | On-off switch or changeover switch |
| Exposed fastener | Stainless steel |
| Rated voltage | Max. 250V AC |
| Rated current | 16A, 25A |
| Internal&external earthing | M4/M5 |
| Cable connection | 3 x (2.5~4)mm2 |
| Cable entries | Standard 2 x M25 x 1.5 plugs |
| 2 x NPT3/4" plugs on request | |
| Cable gland(optional) | DQM-II(Ex d), DQM-III(Ex d) |
| Specification | |
|---|---|
| Global (IECEx) | IECEx LCI 08. 0008X |
| Gas and dust | Ex db IIC T6 Gb |
| Ex tb IIIC T80℃ Db | |
| Europe (ATEX) | LCIE 06 ATEX 6068X |
| Gas and dust | Ex II 2 G Ex db IIC T6 Gb |
| Ex II 2 D Ex tb IIIC T80℃ Db | |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+60℃ |
