BCZ8060 Series Explosion Proof Plug And Sockets , GRP Flameproof Plug Socket

BCZ8060 Series Explosion Proof Plug And Sockets , GRP Flameproof Plug Socket
Download Download Brochure
Data
Material GRP(glass fibre-reinforced polyester resin)
Weight 0.35kg~1.5kg
Dimensions As per design
Enclosure colour Black
Exposed fastener Stainless steel
Rated voltage DC 50V-250V,12V-48V
AC 480V-500V,380V-415V,200V-250V,100V-130V,12V-48V
Rated current 10A,16A
Cross section of cable 2.5~4mm2
Cable entries Standard 1 x M25x1.5 cable gland(plastic), 1 x M25x1.5 plug (plastic)
Cable gland(optional) DQM-I(Ex e)
warromLogo

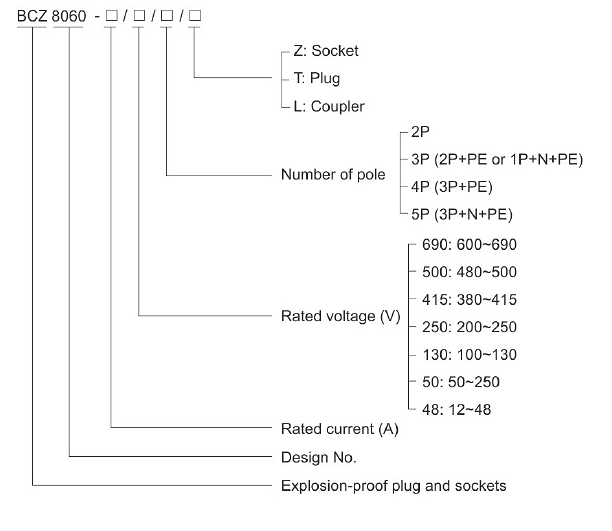

Engineering Diagram
Specification
Global (IECEx) IECEx CNEX 21.0004X
Gas and dust Ex db eb IIC T6 Gb
Ex db eb IIC T6 Gb
Europe (ATEX) CNEX 21 ATEX 0003X
Gas and dust Ex II 2 G Ex db eb IIC T6 Gb
Ex II 2 D Ex tb IIIC T80℃ Db IP66
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN;IEC
Degree of protection IP66
Ambient temperature -20℃~+55℃
