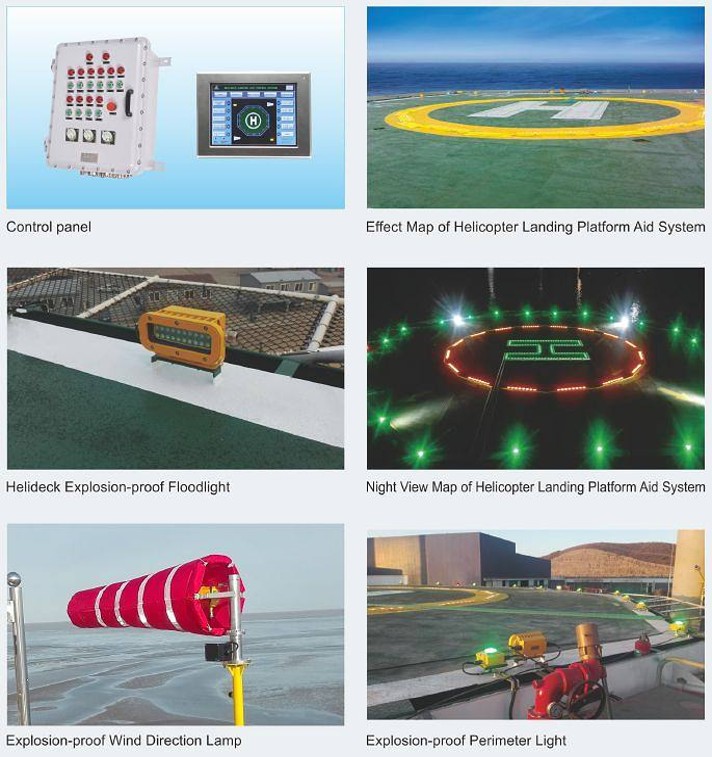

| HDL-H Helideck Explosion-proof H Light | Ex
II 2 G Ex db eb IIC T6 Gb
|
| Ex
II 2 D Ex tb IIIC T80℃ Db IP66/IP67
|
|
Enclosure uses high quality maritime aluminium alloy, which is applied to the ocean environment.
|
|
LED green light source, service life is up to 100000 hours.
|
|
Standard light and bright light of light fittings can be switched through controlling the system and the dimming instruction of light fittings.
|
|
Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements.
|
|
Total height is less than 25mm, protection degree is higher to IP66/IP67/IP69.
|
| HDL-C Helideck Explosion-proof Circle Light | Ex
II 2 G Ex db eb IIC T6 Gb
|
| Ex
II 2 D Ex tb IIIC T80℃ Db IP66/IP67
|
|
Enclosure uses high quality maritime aluminium alloy, which is applied to the ocean environment.
|
|
LED yellow light source, service life is up to 100000 hours.
|
|
Standard light and bright light of light fittings can be switched through controlling the system and the dimming instruction of light fittings.
|
|
Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements.
|
|
Total height is less than 25mm, protection degree is higher to IP66/IP67/IP69.
|
| HDL-P Explosion-proof Perimeter Light | Ex
II 2 G Ex db eb IIC T6 Gb
|
| Ex
II 2 D Ex tb IIIC T80℃ Db IP66/IP67
|
|
Enclosure is precision casting by 316 stainless steel, powder coated on surface after finish machining, strong corrosion resistance.
|
|
LED green light source, service life is up to 100000 hours.
|
|
Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements
|
|
Total height is less than 100mm, protection degree is higher to IP66/IP67.
|
| HDL-F Helideck Explosion-proof Floodlight | Ex
II 2 G Ex db eb mb op is IIC T5 or T4 Gb
|
| Ex
II 2 D Ex tb op IIIC T95℃ or T130℃ Db IP66/IP67
|
|
Enclosure uses maritime aluminium alloy, powder coated on surface after preservative treatment.
|
|
LED white light source, service life is up to 100000 hours.
|
|
In-built constant voltage constant current driving power, wide voltage input, constant power output, fast start, stable performance, surge resistance, overcurrent, open circuit, short circuit, etc. protection function.
|
|
Total height is less than 135mm, protection degree is higher to IP66/IP67.
|
| HDL-S Explosion-proof Status Light | Ex
II 2 G Ex db eb mb op is IIC T6Gb
|
| Ex
II 2 D Ex tb op is IIIC T80℃ Db IP66
|
|
Enclosure uses maritime aluminium alloy, powder coated on surface after preservative treatment.
|
|
Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements.
|
|
Through the control system, status instructions are given to the lamps
|
|
The red LED light source flashes and gives warning signals.
|
|
Total height is less than 100mm, protection degree is higher to IP66/IP67.
|
| HDL-W Explosion-proof Wind Direction Lamp | Ex
II 2 G Ex db eb op is IIC T6 Gb
|
| Ex
II 2 D Ex tb op is IIIC T80℃ Db IP66
|
|
Enclosure uses maritime aluminium alloy, powder coated on surface after preservative treatment.
|
|
Professional optics software designed secondary light distribution system,conform to CAP437 standard requirements.
|
|
Through the control system, status instructions are given to the lamps.
|
|
The red LED light source flashes and gives warning signals.
|
|
Total height is less than 100mm, protection degree is higher to IP66/IP67.
|
| HRMD91 Explosion-proof Distribution Panels | Ex
II 2 G Ex db IIB+H2 T6 Gb
|
| Ex
II 2 G Ex tb IIIC T80℃ Db IP66
|
|
Copper-free Aluminium Alloy enclosure, powder coated surface.
|
|
Equipped with specialized hinge structure, which can prevent the flameproof joints from damage when opening and closing the box, and greatly prolong the service life of box.
|
|
The boxes can be combined and installed freely to save space and meet the requirements of various distribution systems.
|
|
Special requirements on request.
|
