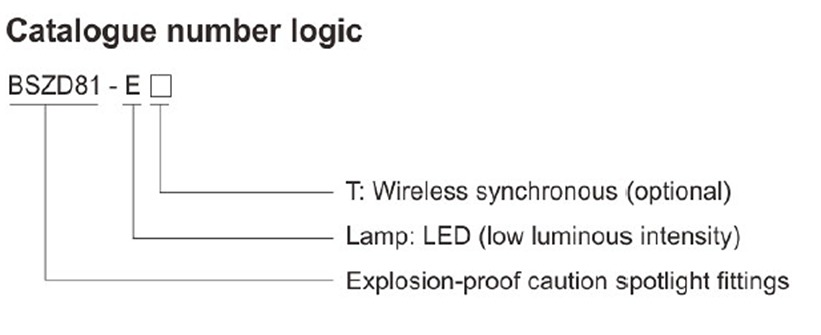

BSZD81-E Series Caution Spotlight Fittings Explosion Proof IP65 Protection
Download Brochure| Data | |
|---|---|
| Enclosure | Copper-free Aluminium Alloy, powder coated surface, yellow(RAL1021) |
| Toughened glass, atands 4J impact | |
| Exposed fastener | Stainless steel |
| Rated voltage | 100~240V AC 50/60Hz |
| Lamp | LED |
| Lamp Power | ≤10W |
| Lamp Color | Red |
| Max. luminous intensity value | ＞200cd |
| Flash frequency | 16,20,30,40,60,80,120,240(times/min) |
| Earthing protection | M5 (internal & external earth bolts) |
| Degree of protection | IP65 |
| Ambient temperature | -20℃~+55℃ |
| Terminal | 3 x 1.5~2.5mm2 (L+N+PE) |
| Cable entries | 4 x M25 x 1.5 plugs |
| Cable gland | DQM-I (Ex e) |
| Weight | 10kg |
| Specification | |
|---|---|
| Global (IECEx) | IECEx CQM 11.0026X |
| Gas and dust | Ex d e IIC T6 Gb |
| Ex tb IIIC T80℃ Db IP65 | |
| Europe (ATEX) | EPT 14 ATEX 1155 |
| Gas and dust | Ex II 2 G Ex d e IIC T6 Gb |
| Ex II 2 D Ex tb IIIC T80℃ Db IP65 | |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP65 |
