BAT85 Series Explosion Proof Floodlights , Atex Led Flood Light Corrosion Proof IP66
Download Brochure| Data | |
|---|---|
| Material | Copper-free Aluminium Alloy,powder coated surface,yellow(RAL1021), |
| Toughened glass,stands 4J impact | |
| Weight | 28.50kg/31.40kg |
| Dimensions | 532x460x308mm |

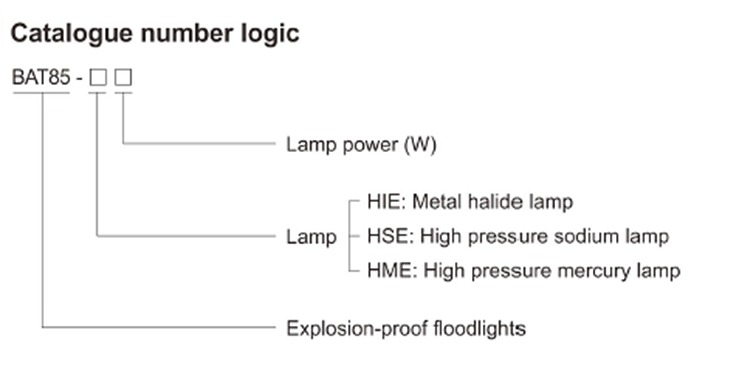

| Lamp specification | HIE HSE HME |
| Lamp power (W) | 70~400W |
| Rated voltage | European standard: 120V, 208V, 220~240V, 250V, 277V AC 50Hz/60Hz |
| American standard: 120V, 208V, 220~240V, 250V, 277V AC 60Hz/50Hz | |
| Rated luminous flux | 10500~56500lm |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | 2×M25×1.5 plugs |
| Cable gland (optional) | DQM-II (Ex d) or DQM-III (Ex d) is recommended. |
| Specification | |
|---|---|
| Global (IECEx) | IECEx CQM 11.0013X |
| Gas and dust | Ex db IIC T3 or xxx℃1) Gb |
| Ex tb IIIC Txxx℃1) Db IP66 | |
| Europe (ATEX) | TUV CY 18 ATEX 0206017X |
| Gas and dust | Ex II 2 G Ex db IIC T3 or xxx℃1) Gb |
| Ex II 2 D Ex tb IIIC Txxx℃1) Db IP66 | |
| Certificates | IECEx; ATEX；CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -40℃~+60℃ |
