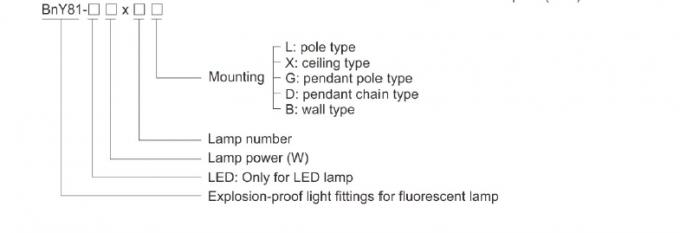

BnY81 Series Explosion Proof Fluorescent Light , T8 Fluorescent Tube 36W
Download Brochure| Data | |
|---|---|
| Material | Polycarbonate, stands 7J impact, corrosion-proof |
| Diffuser Polycarbonate, high light transmission, | |
| stands 7J impact, corrosion-proof | |
| Weight | 2.25~5.25kg |
| Dimensions | 1360x170x114mm |
| Lamp specification | T8 tube |
| Lamp power (W) | 36W(18W) x 2； 36W(18W) x 1 |
| Emergency power (W) | 36W x 1 |
| Emergency starting time | 0.3s |
| Charging time | 24h |
| Emergency lighting time | 120/180 Mins |
| Rated voltage | 100~300V AC 50/60Hz |
| Rated luminous flux | 1300~6500lm |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | 2 xФ26: 2 xM25 x1.5 cable glands (DQM-I Ex e, plastic) |
| Available cable outer diameter | Φ9~Φ16 (mm) |
| Specification | |
|---|---|
| Global (IECEx) | IECEx CQM 12.0046X |
| Gas and dust | Ex nA IIC T4 Gc |
| Ex t IIIC T80℃ Db IP66 | |
| Europe (ATEX) | LCIE 12 ATEX 1009X (gas) |
| LCIE 12 ATEX 3019X (dust) | |
| Gas and dust | Ex II 3 G Ex nA IIC T4 Gc |
| Ex II 2 D Ex t IIIC T80℃ Db IP66 | |
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -20℃~+55℃ |
