BLK Series IP66 Explosion proof Motor Switches (Ex d IIC) 230V 400VAC

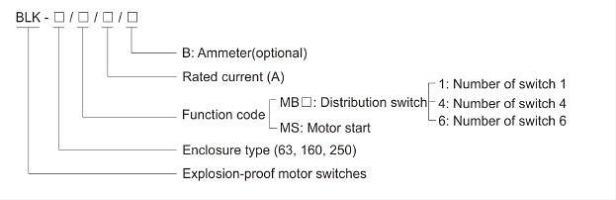

Download Brochure| Data | |
|---|---|
| Material | Copper-free Aluminium Alloy, powder coated surface |
| Weight | 6.50 kg/28.00kg |
| Dimensions | 215Wx215Hx170D(mm) |
| Enclosure colour | Window grey (RAL7040) |
| Exposed fastener | Stainless steel |
| Circuit breaker | MCB (miniature circuit breaker) |
| Max. working voltage | Max.690V AC 50/60Hz; 500V DC |
| Rated voltage | 1P/230V AC, 2P/3P/4P/400V AC 50/60Hz |
| Rated current | 1A~63A |
| Number of pole | 1P, 2P, 3P, 4P |
| Breaking capacity | 6kA, 10kA, 15kA |
| Tripping characteristic | Instantaneous tripping range (5~10) In, (7~10) In or (10~14) In |
| Impulse withstand voltage | 6kV(MCB);8kV(MCCB) |
| Internal&external earthing | M5/M8 |
| Cable entries | Standard 1~16A: 2 x M25 x 1.5 plugs |
| 20~32A: 2 x M32 x 1.5 plugs | |
| 40~63A: 2 x M40 x 1.5 plugs | |
| Cable gland (optional) | DQM-II(Ex d), DQM-III(Ex d) |
| Specification | |
|---|---|
| Global (IECEx) | IECEx CQM 12.0037X |
| Gas and dust | Ex db IIC T6 Gb |
| Ex tb IIIC T80℃ Db IP66 | |
| Europe (ATEX) | Presafe 17 ATEX 10687X |
| Gas and dust | Ex II 2 G Ex db IIC T6 Gb |
| Ex II 2 D Ex tb IIIC T80℃ Db | |
| Certificates | IECEx; ATEX |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+55℃ |
