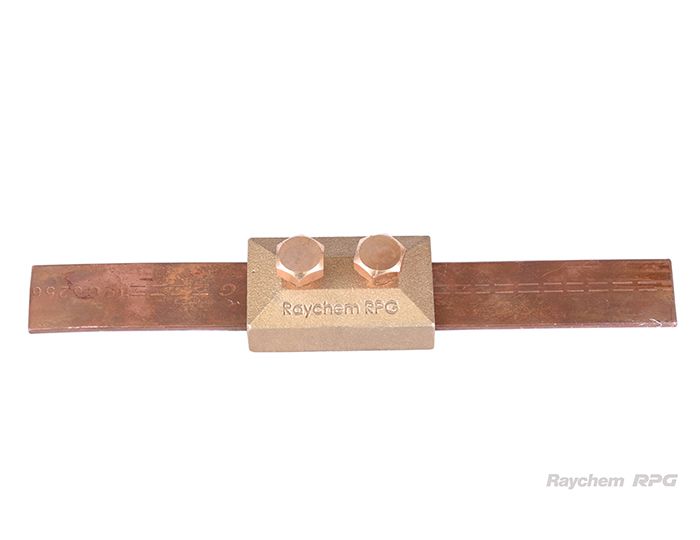

OBLONG TEST CLAMP

Raychem RPG

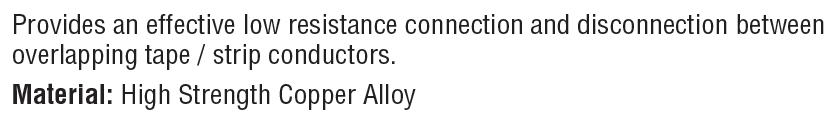

 Technical Detail 1
Download Download Brochure

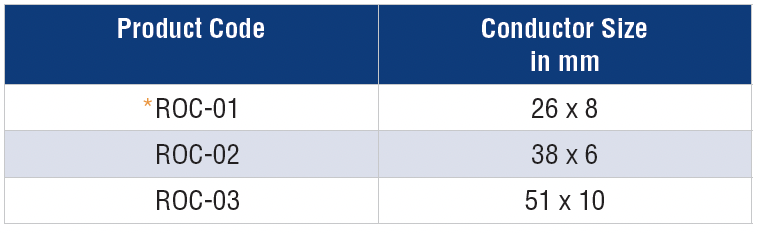

Detailed Specifications

 Specification 1
Speedwell

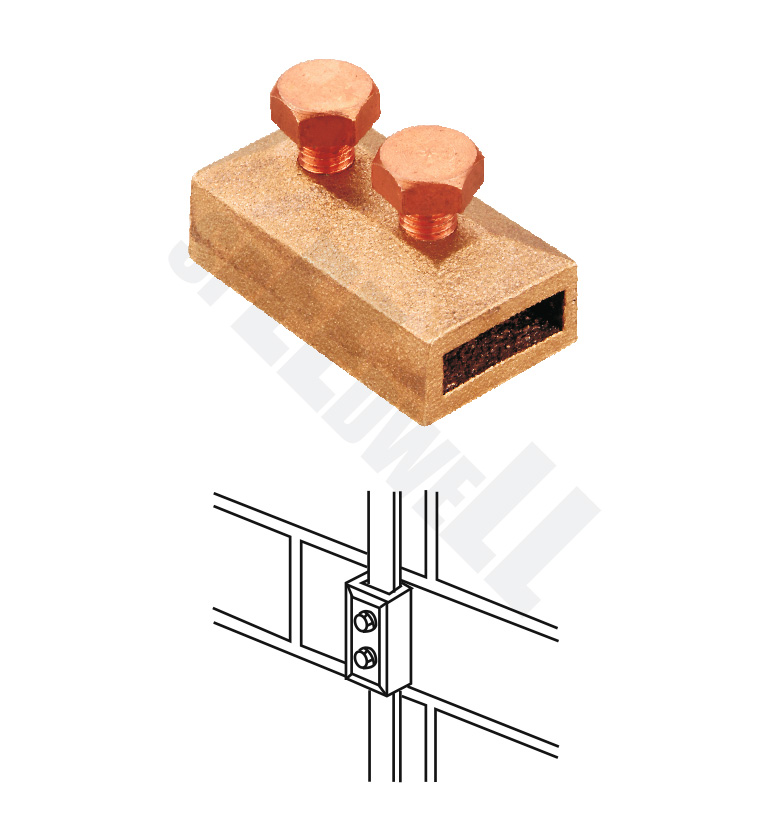

SPEEDWELL Oblong Test / Junction Clamps are used for straight through tape joints and also used for disconnecting the earthing or Lightning protection system for testing purpose. The tapes can be overlapped and secured by two bolts. Materials: Body - Gunmetal Bolts - Silicon Bronze, Phosphor Bronze, SS Torch: BS EN 50164-1:2000 (13 Nm)

Download Download Brochure

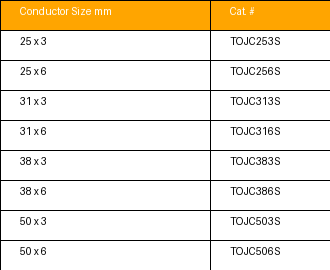

Detailed Specifications

 Specification 1
