CEE Panel Mounted Receptacles
Part No: 1632
16 A - 32 A: screwless, with TwinCONTACT, 20° inclination
63 A: X-CONTACT, with screw terminals, 20° inclination
| Protection type | Rating Amp. | No. of poles | 230 V 50 and 60 Hz | 400 V 50 and 60 Hz | Product Data Sheet | Actions |
|---|---|---|---|---|---|---|
| Part no. | Part no. | |||||
| IP 44 | 16 | 2+E | 1632 | - |  | |

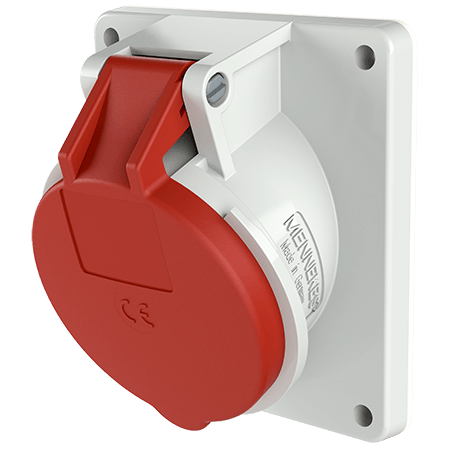

| IP 44 | 16 | 3+E | - | 1638 | | |
| IP 44 | 16 | 3+N+E | - | 3473 | | |

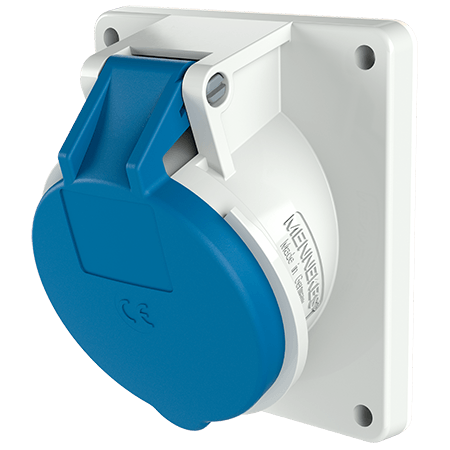

| IP 44 | 32 | 2+E | 1734 | - | | |
| IP 44 | 32 | 3+E | - | 1740 | | |
| IP 44 | 32 | 3+N+E | - | 1746 | | |
| IP 44 | 63 | 2+E | 1147A | - | | |

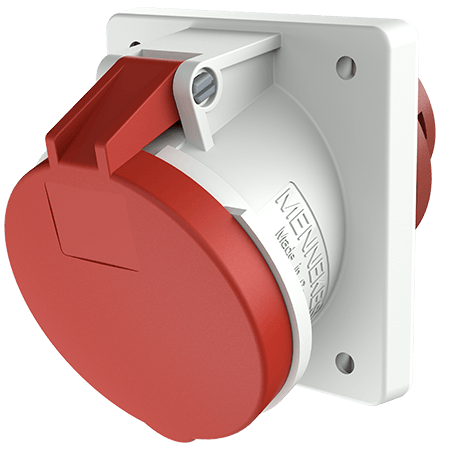

| IP 44 | 63 | 3+E | - | 1151A | | |
| IP 44 | 63 | 3+N+E | - | 1155A | |
Part No: 1668
16 A - 32 A: screwless, with TwinCONTACT, straight
63 A: X-CONTACT, with screw terminals, straight
| Protection type | Rating Amp. | No. of poles | 230 V 50 and 60 Hz | 400 V 50 and 60 Hz | Product Data Sheet | Actions |
|---|---|---|---|---|---|---|
| Part no. | Part no. | |||||

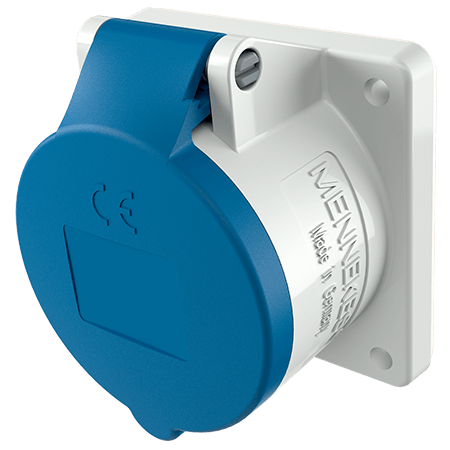

| IP 44 | 16 | 2+E | 1668 | - | | |

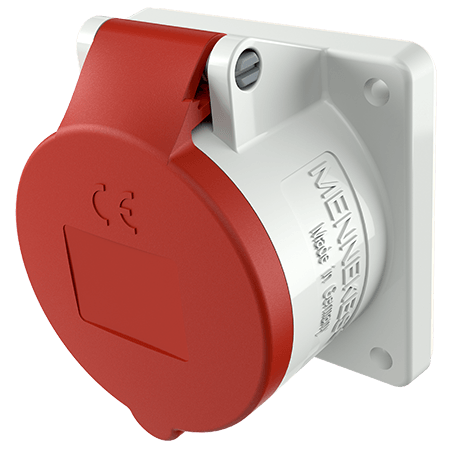

| IP 44 | 16 | 3+E | - | 1674 | | |
| IP 44 | 16 | 3+N+E | - | 3385 | | |
| IP 44 | 32 | 2+E | 1787 | - | | |
| IP 44 | 32 | 3+E | - | 1791 | | |
| IP 44 | 32 | 3+N+E | - | 1797 | | |
| IP 44 | 63 | 2+E | 1261A | - | | |
| IP 44 | 63 | 3+E | - | 1248A | | |
| IP 44 | 63 | 3+N+E | - | 1252A | |
