CEE Panel Mounted Receptacles - Straight
Part No: 1708
16 A - 32 A: screwless, with TwinCONTACT, straight
63 A - 125 A: X-CONTACT, screw terminals, straight
| Protection type | Rating Amp. | No. of poles | 230 V 50 and 60 Hz | 400 V 50 and 60 Hz | Product Data Sheet | Actions |
|---|---|---|---|---|---|---|
| Part no. | Part no. | |||||
| IP 67 | 16 | 2+E | 1708 | - |  | |
| IP 67 | 16 | 3+E | - | 1712 | | |

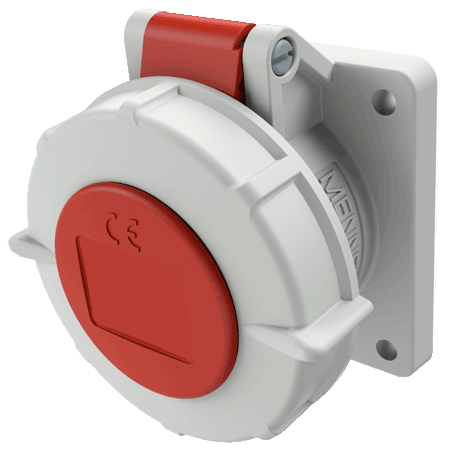

| IP 67 | 16 | 3+N+E | - | 1131 | | |
| IP 67 | 32 | 2+E | 1810 | - | | |
| IP 67 | 32 | 3+E | - | 1814 | | |
| IP 67 | 32 | 3+N+E | - | 1820 | | |
| IP 67 | 63 | 2+E | 1264A | - | | |
| IP 67 | 63 | 3+E | - | 1124A | | |
| IP 67 | 63 | 3+N+E | - | 1128A | | |

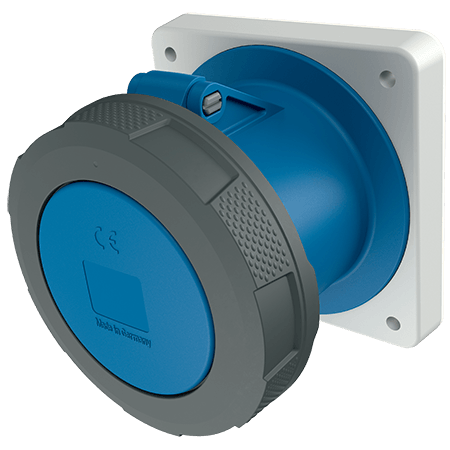

| IP 67 | 125 | 2+E | 3380 | - | | |

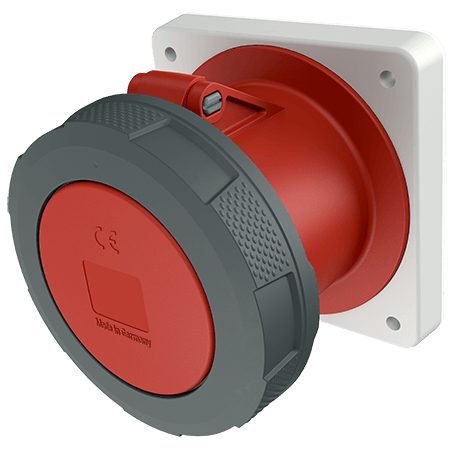

| IP 67 | 125 | 3+E | - | 1457 | | |
| IP 67 | 125 | 3+N+E | - | 1461 | |
