CEE Wall Mounted Receptacles Switched & Interlocked - IP67
Part No: (5602306G*)
CEE wall mounted receptacles switched, with mechanical DUO-interlock
63 A: X-CONTACT
125 A: CEE wall mounted receptacles X-CONTACT, switched, with mechanical DUO-interlock
| Protection type | Rating Amp. | No. of poles | 230 V 50 and 60 Hz | 400 V 50 and 60 Hz | Product Data Sheet | Actions |
|---|---|---|---|---|---|---|
| Part no. | Part no. | |||||
| IP 67 | 16 | 2+E | (5602306G*) | - |  | |

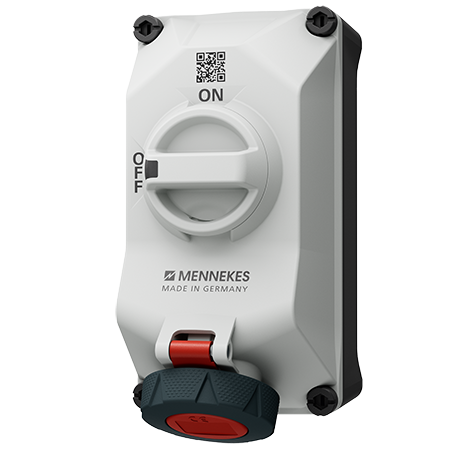

| IP 67 | 16 | 3+E | - | (5602406G*) | | |

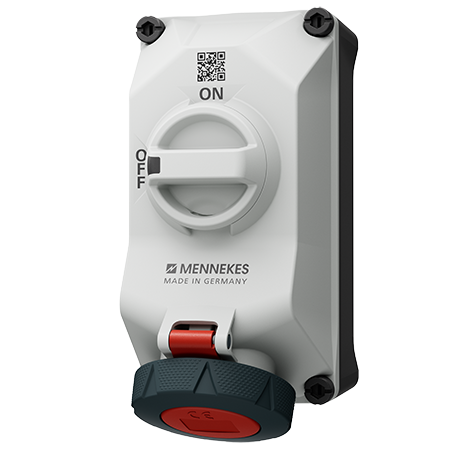

| IP 67 | 16 | 3+N+E | - | (5602506G*) | | |

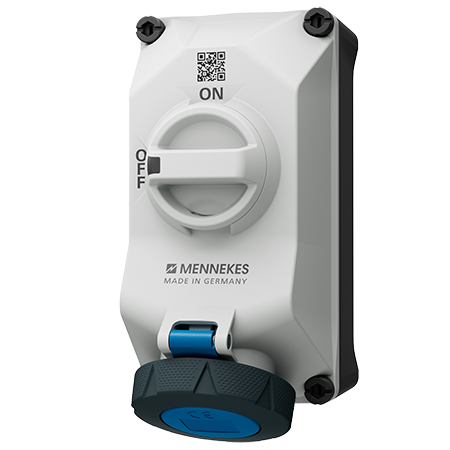

| IP 67 | 32 | 2+E | (5604306G*) | - | | |
| IP 67 | 32 | 3+E | - | (5604406G*) | | |

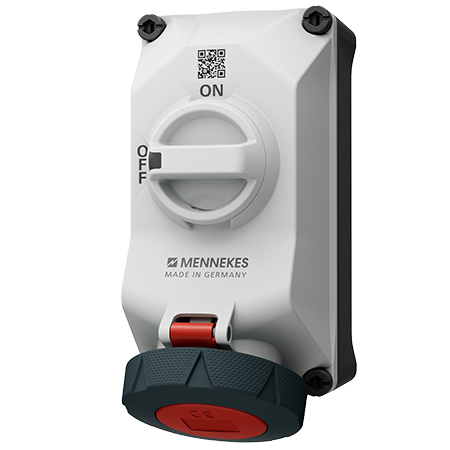

| IP 67 | 32 | 3+N+E | - | (5604506G*) | | |

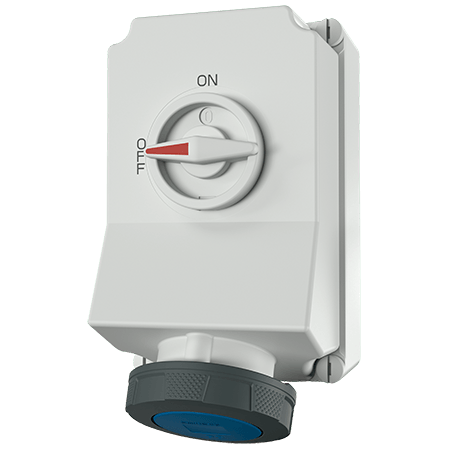

| IP 67 | 63 | 2+E | 5911A | - | | |

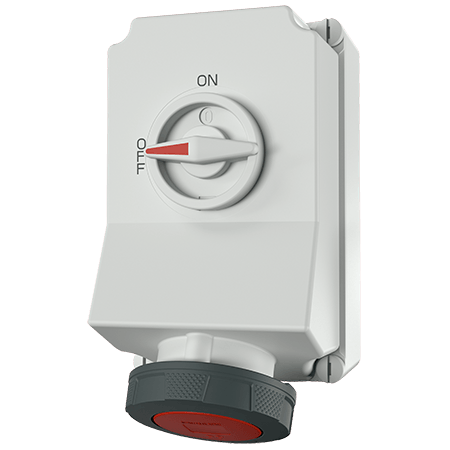

| IP 67 | 63 | 3+E | - | 5110A | | |
| IP 67 | 63 | 3+N+E | - | 5113A | | |

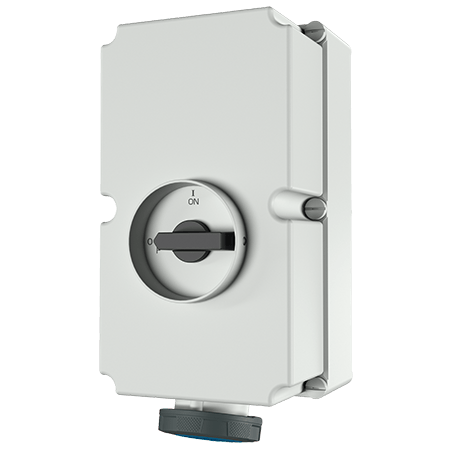

| IP 67 | 125 | 2+E | 7000 | - | | |

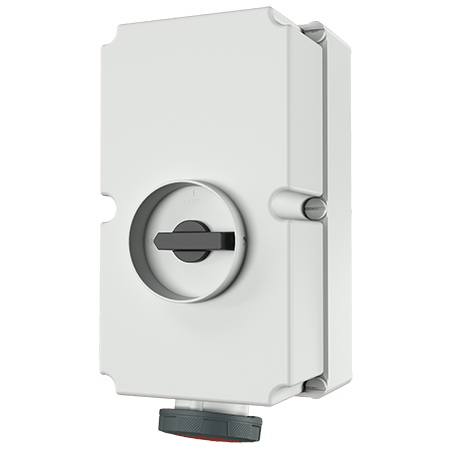

| IP 67 | 125 | 3+E | - | 5691A | | |
| IP 67 | 125 | 3+N+E | - | 5692A | |
* Expected to be available from Q2
